Daikin Easyzone Multi Room Ducted Air Conditioning system
Transform your property’s climate control with the advanced Daikin Easyzone multi room ducted air conditioning system, expertly installed by SWAT Engineering across Greater London. Designed for both high-end residential homes and light commercial spaces, Easy zone bridges the gap between centralised ducted units and total room-by-room independence.
As an approved mechanical engineering contractor, SWAT Engineering integrates Daikin market-leading heat pump technology with intelligent Air zone motorised zoning plenums. This allows a single ducted fan coil unit to independently condition up to eight distinct zones, drastically reducing energy waste and installation footprints.
The Daikin Easyzone multi-room ducted system integrates Daikin’s high-efficiency heat pump fan coil technology with an Air zone motorised zoning plenum. Designed for residential properties, apartment refurbishments, and light commercial spaces with limited ceiling void height, it allows a single hidden indoor unit to independently control temperatures across multiple zones (up to 8 rooms).
Key System Highlights & Benefits
Independent Room Control: Tailor temperatures precisely to each room in 0.5 C increments using smart wireless or wired thermostats (Blue-face, Think, or Lite models).
Maximum Energy Efficiency: Inverter-controlled multi-room operation ensures you only heat or cool spaces actively in use, delivering substantial energy savings.
Discreet Design: Perfect for properties with limited ceiling voids, replacing bulky multi-split configurations with a streamlined, single outdoor-to-indoor ducted setup.
Smart Connectivity: Fully compatible with smartphone apps, voice assistants, and complex Building Management Systems (BMS) for seamless remote management.
Per-wired Plug & Play Assembly: Rapid, hassle-free installation by SWAT Engineering’s accredited London engineering team with pre-wired motorised dampers that bypass the need for mechanical pressure relief valves.
Key Product List & System Components
-
Daikin Ducted Fan Coil Unit (Indoor Unit)
-
Compatible with Daikin slim duct (e.g., FDXM-F, FXDQ-A) and standard duct models (e.g., FBA-A, FXSQ-A).
-
Operates on energy-efficient inverter technology to provide heating or cooling.
-
-

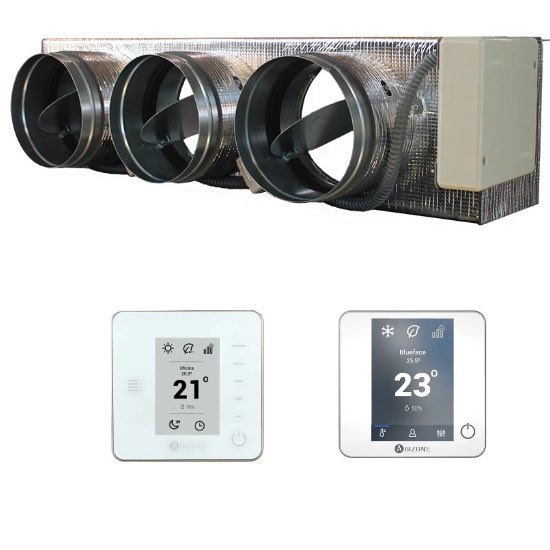

Air zone Motorised Zoning Plenum
-
Per-assembled motorised plenum box that mechanically attaches to the supply air neck of the Daikin indoor unit.
-
Available in Standard and Compact sizes to accommodate tight ceiling voids.
-
Includes motorised circular dampers for individual zone control
-
Optional CMV (Controlled Mechanical Ventilation) inlet connection ∅150 mm for integrating outdoor fresh air supply.
-
-
Central System Control Board & Communication Gateway
-
Built-in main control board that communicates directly with the Daikin indoor unit via a dedicated gateway interface.
-
Automatically adjusts fan speeds and inverter output based on real-time total demand across all active zones.
-
-
Zoning Thermostats & Controllers
-
Blueface: Main full colour touchscreen interface for master control, scheduling, and system mode management.
-
Think: Graphic display thermostat (wired or wireless) featuring low-power e-ink technology.
-
Lite: Simplified button interface for set point adjustments
-
Set points can be adjusted in increments of 0.5
-
Principal Climate Technology
-
-
Smart Connectivity Options
-
Air zone Cloud Web server (Wi-Fi / Ethernet): Enables mobile app control (iOS/Android), voice assistant integration (Amazon Alexa, Google Assistant), and Modbus/BACnet BMS integration.
-
Installation Highlights & Process:
- Professional SWAT Engineering Design: Tailored sizing of duct work and custom grille configuration to ensure optimal airflow, low noise levels, and seamless property integration.
-
Plug-and-Play Pre-Wired Assembly: The motorised plenum arrives pre-wired and factory-tested, minimising on-site electrical wiring errors.
-
No Pressure Relief Valve Required: Integrated motorised dampers dynamically balance airflow and adjust unit capacity without requiring a mechanical bypass or pressure-relief duct.
-
Flexible Duct Connection: Flexible insulated circular ducting connects the plenum spigots directly to supply diffusers or grilles in each controlled room.
-
Compact Ceiling Integration: Fits into shallow ceiling voids, replacing complex multi-split configurations with a single indoor ducted setup.
Standard Plenum Boxes (Medium Static Pressure)
Duct Outlet Diameter: Ø 200 mm | Compatible Daikin Series: FBA, FXSQ
| Model Reference | Connectable Ducts | Outlet Diameter | Compatible Indoor Unit Models |
|---|---|---|---|
| AZEZ6DAIST07XS2 | 2 | 200 mm | FXSQ15A, FXSQ20A, FXSQ25A, FXSQ32A |
| AZEZ6DAIST07XS3 | 3 | 200 mm | FXSQ15A, FXSQ20A, FXSQ25A, FXSQ32A |
| AZEZ6DAIST07S2 | 2 | 200 mm | FBA35A, FBA50A, FXSQ40A, FXSQ50A |
| AZEZ6DAIST07S3 | 3 | 200 mm | FBA35A, FBA50A, FXSQ40A, FXSQ50A |
| AZEZ6DAIST07S4 | 4 | 200 mm | FBA35A, FBA50A, FXSQ40A, FXSQ50A |
| AZEZ6DAIST07M4 | 4 | 200 mm | FBA60A, FBA71A, FXSQ63A, FXSQ80A |
| AZEZ6DAIST07M5 | 5 | 200 mm | FBA60A, FBA71A, FXSQ63A, FXSQ80A |
| AZEZ6DAIST07M6 | 6 | 200 mm | FBA100A, FBA125A, FBA140A, FXSQ100A, FXSQ125A |
| AZEZ6DAIST07L5 | 5 | 200 mm | FBA100A, FBA125A, FBA140A, FXSQ100A, FXSQ125A |
| AZEZ6DAIST07L6 | 6 | 200 mm | FBA100A, FBA125A, FBA140A, FXSQ100A, FXSQ125A |
| AZEZ6DAIST07L7 | 7 | 200 mm | FBA100A, FBA125A, FBA140A, FXSQ100A, FXSQ125A |
| AZEZ6DAIST07L8 | 8 | 200 mm | FBA100A, FBA125A, FBA140A, FXSQ100A, FXSQ125A |
| AZEZ6DAIST07XL7 | 7 | 200 mm | FXSQ140A |
| AZEZ6DAIST07XL8 | 8 | 200 mm | FXSQ140A |
2. Slim Plenum Boxes (Low-Profile Ducted Units)
Duct Outlet Diameter: Ø 150 mm | Compatible Daikin Series: FDXM, FXDQ
| Model Reference | Connectable Ducts | Outlet Diameter | Compatible Indoor Unit Models |
|---|---|---|---|
| AZEZ6DAISL01S2 | 2 | 150 mm | FDXM25F3, FDXM35F3, FXDQ15A3, FXDQ20A3, FXDQ25A3, FXDQ32A3 |
| AZEZ6DAISL01S3 | 3 | 150 mm | FDXM25F3, FDXM35F3, FXDQ15A3, FXDQ20A3, FXDQ25A3, FXDQ32A3 |
| AZEZ6DAISL01M4 | 4 | 150 mm | FDXM50F3, FXDQ40A3, FXDQ50A3 |
| AZEZ6DAISL01L5 | 5 | 150 mm | FDXM60F3, FXDQ63A3 |
Why Choose SWAT Engineering for Your Project?
Operating throughout Greater London and the South of England, SWAT Engineering provides end-to-end HVAC solutions—from initial thermal load calculation and system design to professional installation, commissioning, and scheduled maintenance. Whether you are refurbishing a period townhouse in West London or outfitting a modern commercial office in the City, trust our specialists to deliver optimum thermal comfort.
